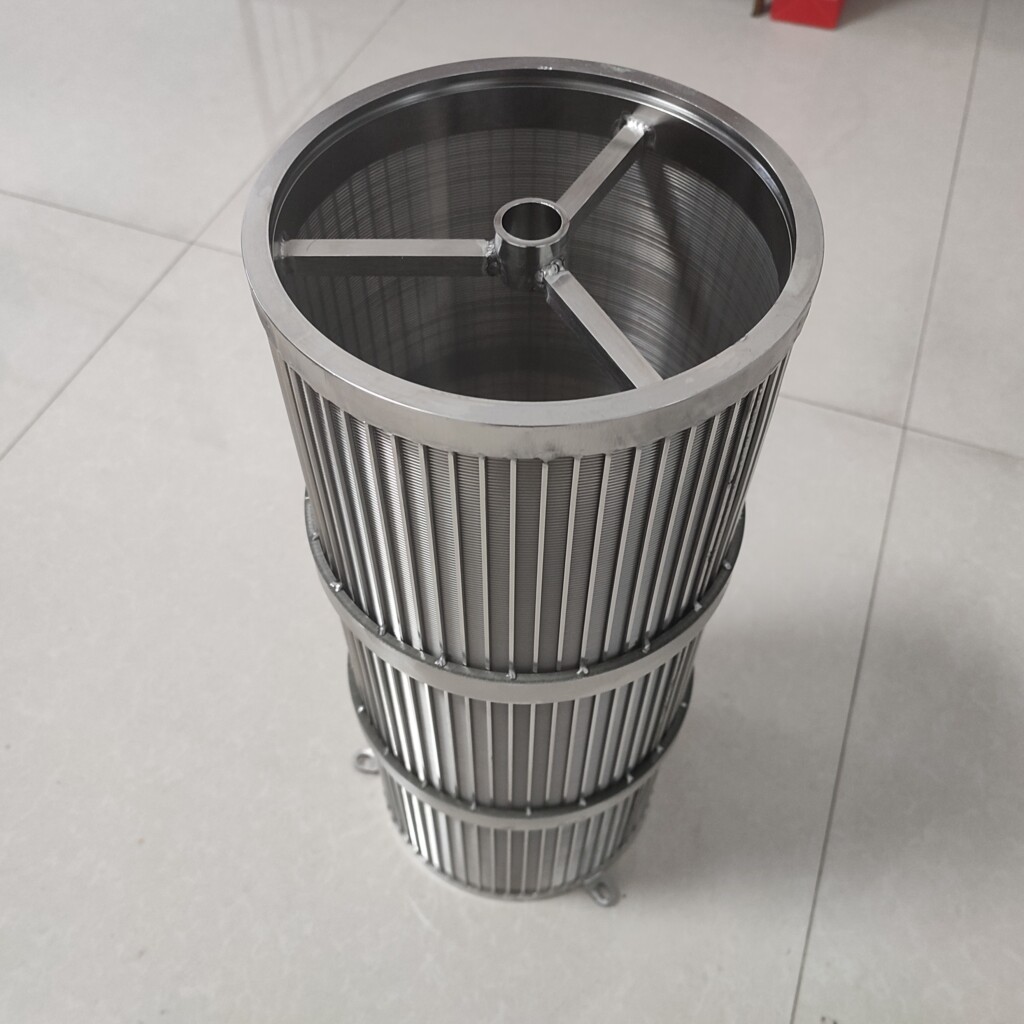

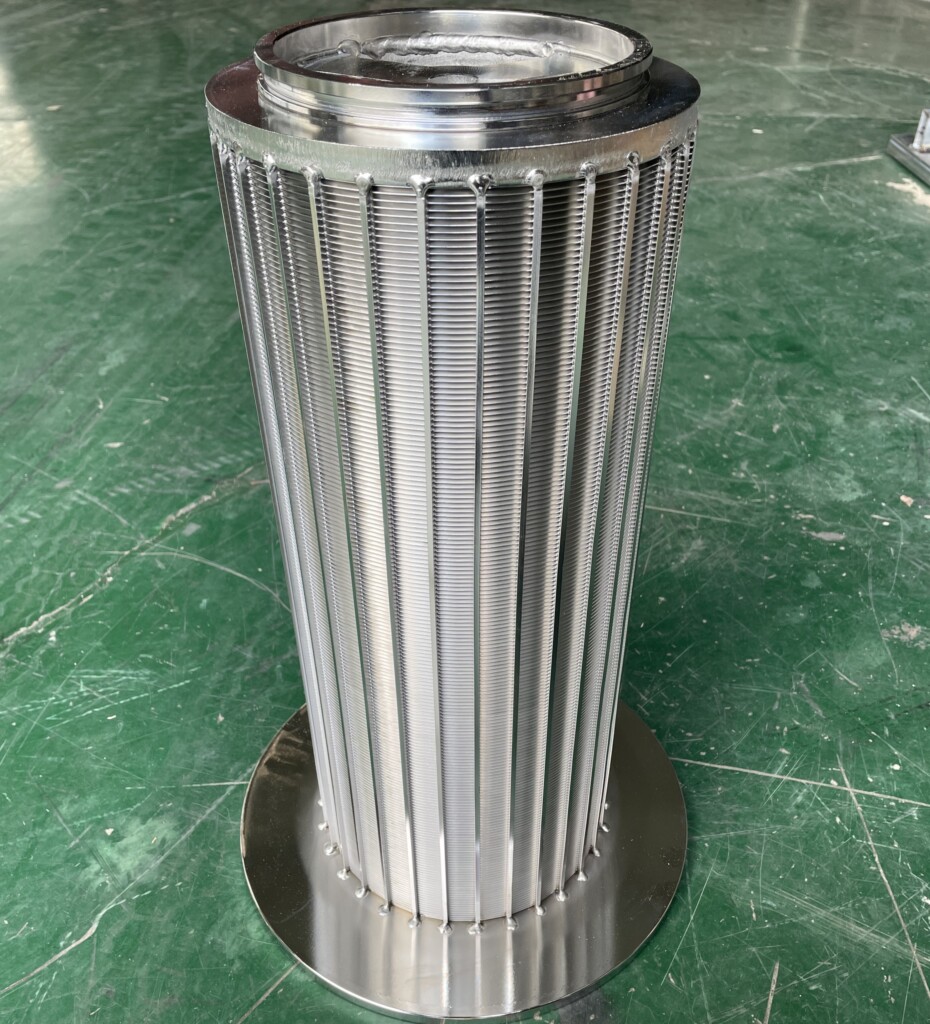

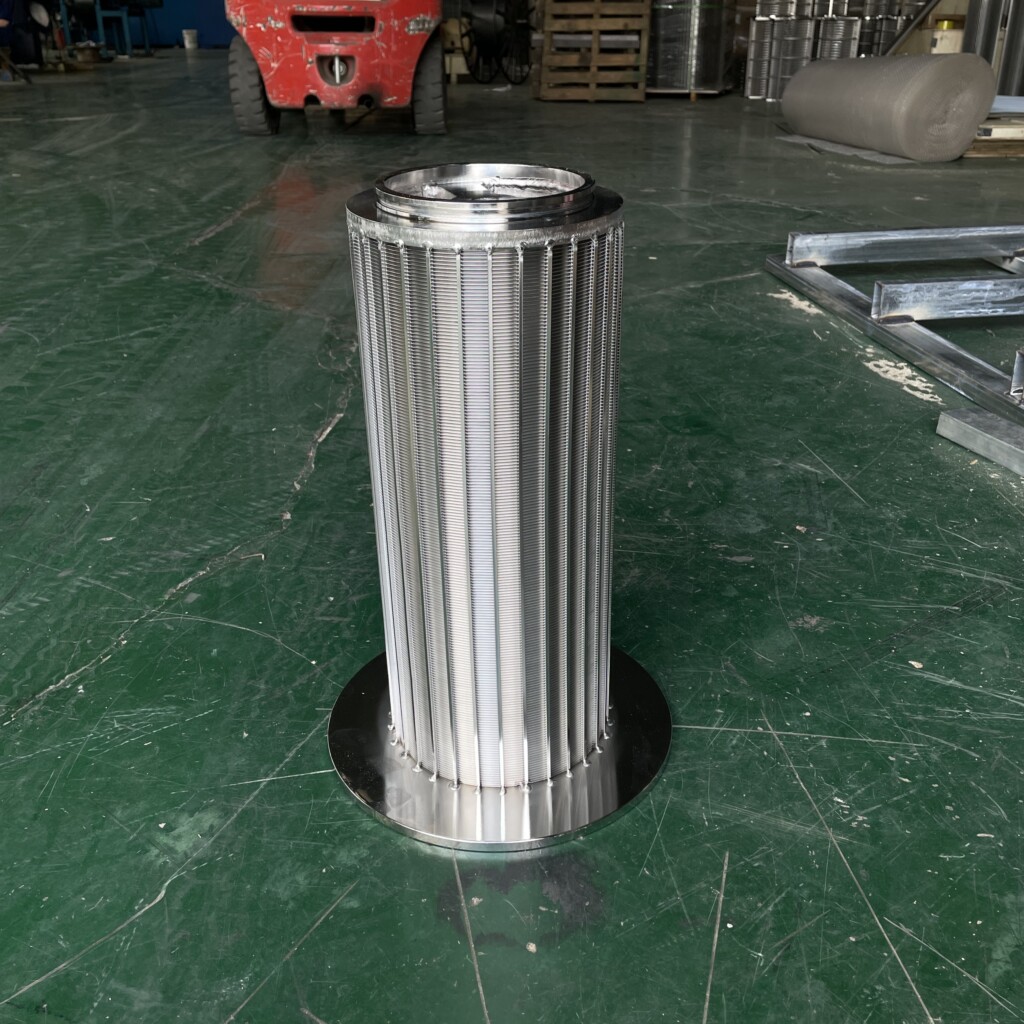

 What is Wedge Wire Elements?

Wedge Wire Elements is used for automatic self-cleaning filters.

The filter element slot opening is a long slit type, which is increase the opening area and flow rate.

Filtration precision range is 20 to 1500 micron.

The scraper is scraped in the direction of the gap and is suitable for conventional filtration requirements. The filtration surface is very smooth and flat, which reduce the abrasion of filter scraper blade.

 Application of Wedge Wire Elements?​

Mineral and aggregate processing

Adhesive/sealant filtration

Waste water treatment

Solid-liquid separation

Food and beverage​

Plastics extrusion

Pulp and paper

Petrochemical

Automotive

Chemical

Coatings

Advantages of Wedge Wire Elements?

Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.

Strong struction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.

Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.

High-precision slot opening: Minimum Slot opening is 20 microns.

Large slot opening: large flow rate.



FAQ

1. What is a Self Cleaning Wedge Wire Filter Element, and how does it differ from standard wedge wire filters?

A Self Cleaning Wedge Wire Filter Element is a high-precision filtration component constructed from V-shaped wedge wires wrapped around vertical support rods, integrated with an automatic self-cleaning mechanism. Unlike standard wedge wire filters that require manual cleaning or disassembly to remove trapped debris, this type features built-in systems (e.g., backwashing, scraper, or ultrasonic) to clear contaminants in-situ. Its core advantage lies in continuous filtration operation without frequent shutdowns, reducing maintenance costs and ensuring stable flow rates for long periods.

2. How does the self-cleaning mechanism of these filter elements work?

The self-cleaning mechanism varies by design, but the most common types include:

Backwashing: Reverses the flow of the filtered fluid temporarily, creating pressure that dislodges debris trapped on the filter surface and flushes it out through a discharge port. Suitable for fine to medium contaminants and liquid filtration applications.

Mechanical Scraper: A motor-driven scraper (or brush) moves along the filter surface, physically removing accumulated solids. Ideal for high-viscosity fluids or heavy contaminant loads where backwashing alone is insufficient.

Ultrasonic Cleaning: Employs ultrasonic waves to generate micro-bubbles that implode near the filter surface, breaking down and removing stubborn deposits (e.g., scale, biofilm). Used for precision filtration and applications with sensitive process requirements.

Pressure Pulse Cleaning: Releases short, high-pressure pulses of fluid to shock and dislodge debris, minimizing fluid loss compared to continuous backwashing.

Most models activate self-cleaning automatically based on pressure differential (when clogging increases pressure drop to a preset threshold) or at fixed time intervals.

3. What are the key advantages of Self Cleaning Wedge Wire Filter Elements over other self-cleaning filter types?

Their unique wedge wire structure and self-cleaning capability deliver several standout benefits:

Durability & Strength: Wedge wire (typically stainless steel 304/316L) offers high mechanical strength, corrosion resistance, and wear resistance, outperforming mesh or cartridge filters in harsh environments (high pressure, high temperature, abrasive fluids).

Precise & Stable Filtration: V-shaped slots provide consistent pore sizes (from 5μm to 5mm), ensuring precise filtration accuracy without slot deformation. The open slot design also maintains high flow rates compared to packed filters.

Low Maintenance: Automatic cleaning eliminates manual disassembly, reducing labor costs and downtime. The self-cleaning process is fast (seconds to minutes) and requires minimal fluid/water consumption for backwashing.

Wide Compatibility: Suitable for both liquid and gas filtration, and adaptable to various fluids (water, oil, chemicals, wastewater) and contaminants (solids, sediments, sludge).

4. What materials are used in Self Cleaning Wedge Wire Filter Elements, and how to select the right one?

The primary materials focus on durability and compatibility with process fluids:

Wedge Wire & Support Rods: Stainless steel 304 (for general-purpose, non-corrosive fluids), 316L (for saline, acidic/alkaline fluids, or food-grade applications), and duplex stainless steel (for high-pressure, extreme-temperature environments). Hastelloy or titanium may be used for ultra-corrosive chemicals.

Self-Cleaning Components: Scrapers/brushes are often made of PTFE, polyurethane, or stainless steel (matched to fluid compatibility). Seals use EPDM, Viton, or PTFE to prevent leakage during cleaning cycles.

Selection depends on fluid chemistry (pH, salinity, corrosiveness), operating conditions (temperature, pressure), contaminant type, and filtration precision requirements.

5. What are the typical applications of Self Cleaning Wedge Wire Filter Elements?

These filter elements are widely used across industries requiring continuous, low-maintenance filtration:

Water Treatment: Municipal wastewater treatment, industrial process water, groundwater filtration, and reverse osmosis (RO) pre-filtration to protect membranes.

Oil & Gas: Wellhead fluid filtration, produced water treatment, and fuel/oil filtration to remove sand, scale, and solids.

Food & Beverage: Juice, beer, and dairy filtration (removing pulp, sediment, or impurities) while meeting hygiene standards (CIP-compatible designs).

Chemical & Pharmaceutical: Chemical process fluid filtration, catalyst recovery, and pharmaceutical raw material purification, ensuring product purity and process stability.

Mining & Mineral Processing: Slurry filtration, tailings water treatment, and process water recycling to remove abrasive particles.

Agriculture & Irrigation: Drip irrigation system filtration to prevent clogging of emitters by soil particles and organic matter.

6. How to determine the appropriate filtration precision (slot size) for these filter elements?

Filtration precision (slot size) is selected based on the target contaminant size and process requirements:

For particle removal to protect downstream equipment (e.g., pumps, membranes), select a slot size smaller than the minimum critical particle size that could damage the equipment (typically 5-100μm).

For product purification (e.g., food, pharmaceuticals), match the slot size to the maximum allowable impurity size in the final product (often 1-20μm).

For wastewater treatment, consider the desired effluent quality and contaminant load — larger slots (100μm-5mm) for heavy sediment, smaller slots for fine particles.

It’s critical to balance precision with flow rate: smaller slots improve filtration quality but may require more frequent self-cleaning cycles.
