Features

• Accurate slot width
• Custom designed to fit any application

Describe

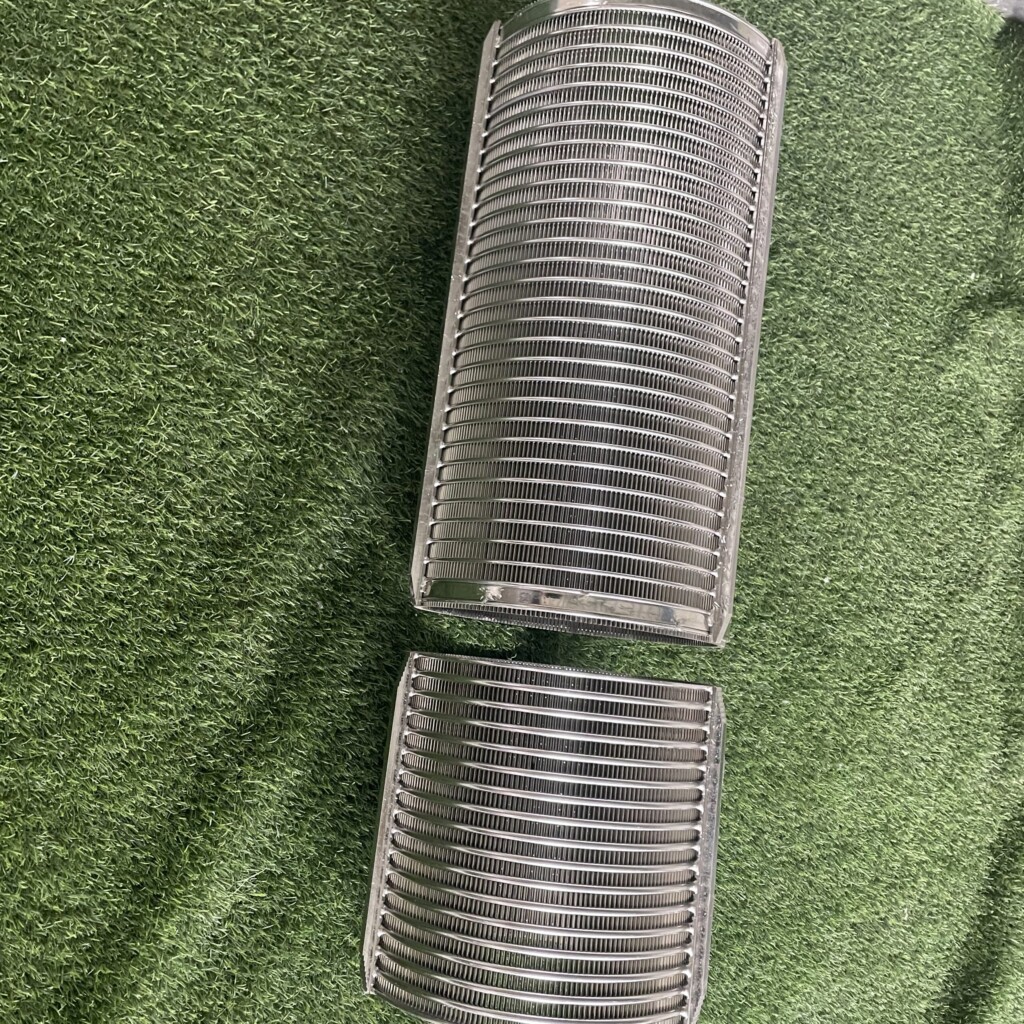

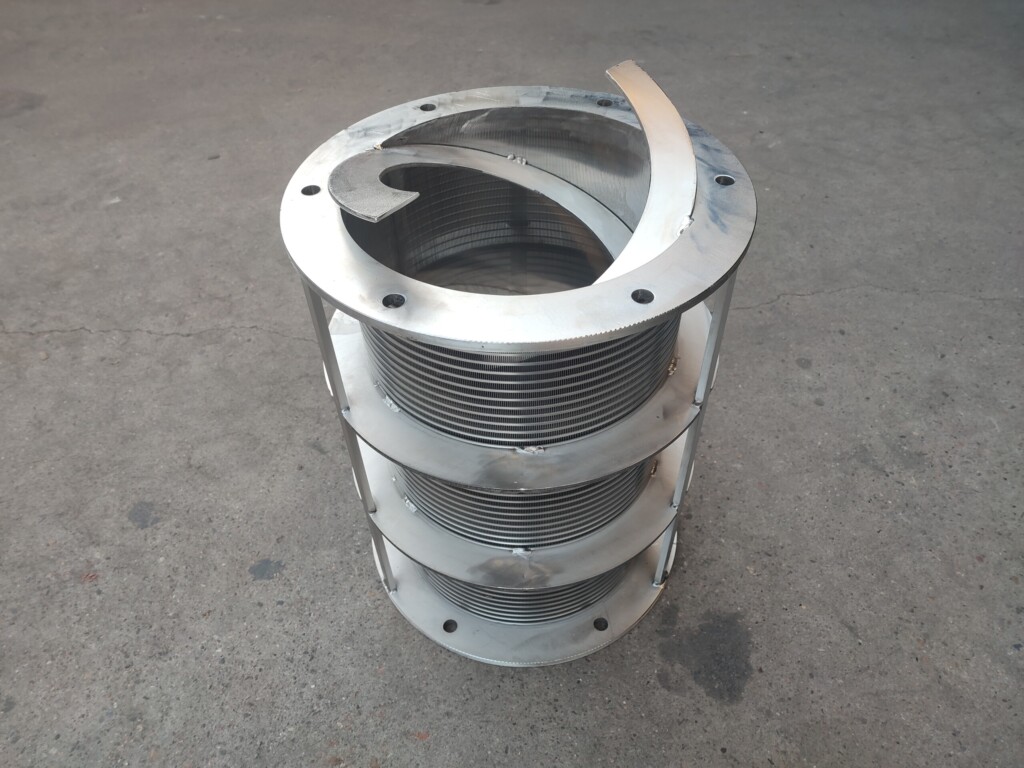

A screw press screen is a key component of a screw press machine, mainly used for solid-liquid separation tasks.

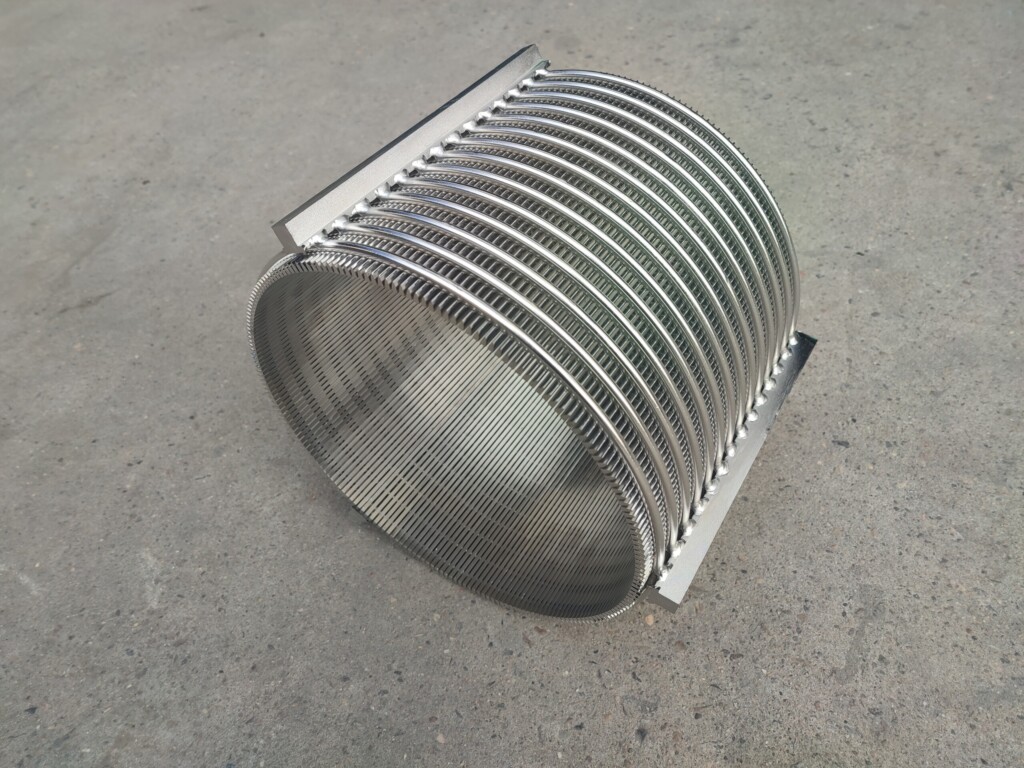

• Structure and Working Principle：It is typically composed of wedge-shaped wires and support rods. The wedge-shaped wires are wound around the support rods and welded to form a cylindrical screen. When the screw press operates, the material enters the screen through the feed end. Under the pushing of the screw, the liquid in the material is squeezed out through the gaps of the screen, while the solid particles are retained inside, thus achieving solid-liquid separation.
• Material：Commonly used materials include stainless steel grades such as 304, 304L, 316, and 316L. These materials have excellent corrosion resistance, wear resistance, and high-temperature resistance, which can ensure the long-term stable operation of the screen in harsh working environments.
• Characteristics：Screw press screens have the advantages of high welding strength, uniform gaps, high precision, and smooth surfaces. They are not easy to be blocked by materials, and are convenient for backwashing and cleaning. The filtering accuracy can reach 0.05-0.1mm, and the flow rate is large, with stable quality.
• Types：There are various types of screw press screens, such as wire-woven screens, perforated plate – rolled screens, and trapezoidal wire screens. Wire-woven screens are suitable for general solid-liquid separation; perforated plate – rolled screens are more resistant to blockage when dealing with fibrous materials; trapezoidal wire screens have the characteristics of small inner gaps, large outer gaps, less slag discharge, and easy cleaning.
• Applications：They are widely used in sewage treatment, livestock manure treatment, food processing, paper making, and other industries. For example, in sewage treatment, they are used to filter sludge; in the food industry, they are used for the dehydration of fruit and vegetable processing waste and other materials.
• WIREDIAMETER：Wrap wire diameter:0.75*1.5mm 1.5*2.2mm 1.5*2.5mm 1*2mm 2*3mm 2.2*3.5mm 3*4.7mm 3.3*6.3mm

FAQ

1. What is a Screw Press Screen and what is its core function?

A Screw Press Screen is a key component of screw press machines, mainly used for solid-liquid separation, filtration, and dewatering processes. It works with the screw conveyor to retain solid materials within the press chamber while allowing separated liquid to pass through the screen mesh and be discharged. Its core function is to ensure efficient filtration and compression of materials, reducing the volume and moisture content of the final solid residue . It is widely applied in industries such as wastewater treatment, food processing, and oil extraction.

2. What are the main structural characteristics of Screw Press Screens?

Screw Press Screens typically adopt a cylindrical or semi-cylindrical structure, closely matched with the screw flights. The screen is made of wear-resistant materials (such as stainless steel) to withstand friction from materials during pressing. It features uniform mesh openings to ensure consistent filtration effect. Some designs have an upward-flow structure, where light impurities and air rise to the top for discharge, while heavy impurities settle at the bottom, effectively improving separation efficiency .

3. How does a Screw Press Screen cooperate with the screw press to complete dewatering?

When materials enter the press chamber from the feed hopper, the screw conveyor pushes them forward and gradually compresses them due to the decreasing pitch or increasing diameter of the screw. During this process, the Screw Press Screen forms a closed space with the screw, forcing the liquid in the materials to penetrate the screen mesh under pressure. The separated liquid is collected and discharged through the water collection device, while the compressed solid residue is pushed out from the discharge port, achieving the dewatering and volume reduction of materials .

4. What factors should be considered when selecting a Screw Press Screen?

Key selection factors include: ① Material characteristics (moisture content, particle size, abrasiveness, and chemical properties); ② Required filtration precision (mesh size, which determines the solid particle retention effect); ③ Equipment processing capacity (matching the screen area with the press’s throughput); ④ Material durability (choosing corrosion-resistant or wear-resistant materials based on working conditions); ⑤ Compatibility with the screw press model to ensure proper fit and gap .

5. What are the requirements for the installation of Screw Press Screens?

During installation, first ensure the screen is clean and free of deformation or damage. The screen should be tightly attached to the press chamber inner wall with uniform gaps between the screen and the screw flights (usually 0.1-0.2mm, adjustable according to materials) . All fixing bolts must be tightened to prevent vibration-induced displacement during operation. Additionally, check the coaxiality between the screen and the screw to avoid uneven wear caused by eccentricity. Follow the manufacturer’s shutdown procedures and allow the equipment to cool before installation .

6. How often should Screw Press Screens be inspected and maintained?

Routine inspections should be conducted every 8 hours of operation, including checking for screen blockages, damage, and wear . Weekly maintenance involves cleaning the screen surface with a high-pressure water gun or brush to remove attached dirt and scaling (especially in areas with hard water) . Annual inspections require a comprehensive check of screen deformation, thinning, and mesh damage, as well as verifying the clearance with the screw flights . The maintenance frequency should be adjusted based on material abrasiveness and processing intensity.
